Question Reference ​

Questions are the interactive data collection components of a survey. The builder provides 19 question types organized into four functional data families, supporting comprehensive validation rules, option customization, glossary tooltips, and specialized accessibility modes.

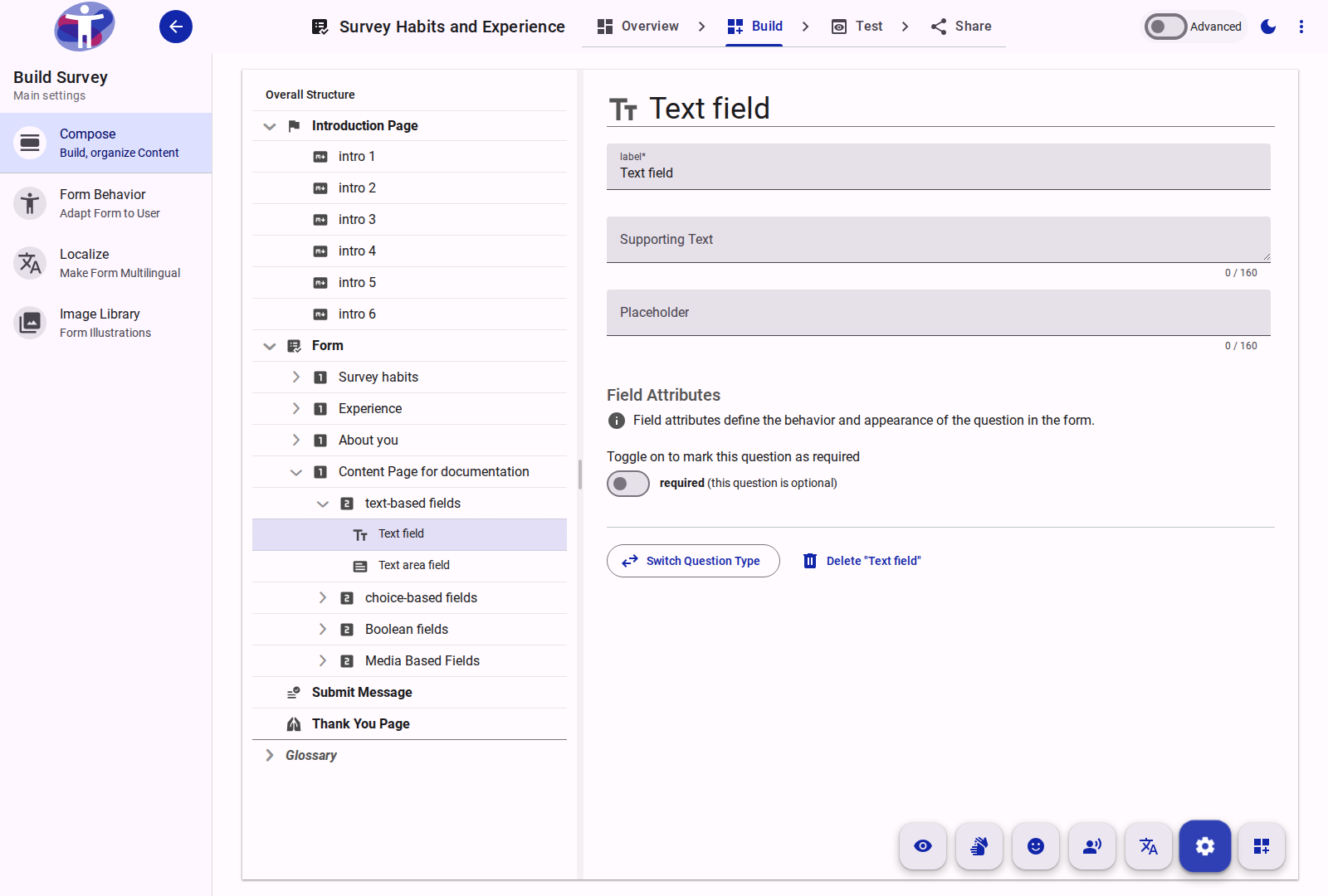

Standard question configuration interface.
The primary interface for configuring a survey question in Build → Compose.

The 19 Question Types ​

The survey engine supports 19 specialized question types aligned with the question-type chooser in the builder:

Data FamilyType Code (subType)Label in ChooserHTML ElementData GroupDescription
Text BasedtextfieldText Fielda11y-text-fieldopenSingle-line free text input.
Text BasedtextareaText Areaa11y-text-field (type="textarea")openMulti-line text area with automatic vertical height expansion.
Text BasednumberNumbera11y-text-field (type="number")openValidated numeric input with optional range and step limits.
Text BasedtelTelephonea11y-text-field-telopenTelephone input triggering numeric keypad on mobile devices.
Text BaseddateDatea11y-text-field-dateopenStandardized ISO calendar date selector.
Text BasedemailEmaila11y-text-field (type="email")openFormat-validated email input for standard form answers.
Text BasedurlURLa11y-text-field (type="url")openValidated HTTP or HTTPS web address input.
Text BasedaccountEmailAccount Emaila11y-account-emailopenSpecialized respondent account email with verification and opt-in consent checkboxes.
Choice BasedradioRadio Groupa11y-radio-groupchoiceMutually exclusive single-choice selection with specify support.
Choice BasedcheckboxCheckbox Groupa11y-checkbox-groupmultiMulti-select choice group allowing multiple answers with specify support.
Choice BaseddropdownDropdowna11y-selectchoiceCompact dropdown menu for single-choice selection from long lists.
Choice BasedratingRatinga11y-ratingratingOrdinal rating scale (stars or numbered points) for satisfaction or agreement.
Choice BasedrankingRankinga11y-rankingchoiceReorderable list allowing respondents to prioritize items by preference.
BooleancheckCheckboxa11y-checkboxbooleanSingle standalone binary checkbox (true/false) for explicit declarations.
BooleanswitchSwitcha11y-switchbooleanBinary toggle switch for binary preferences.
Media BasedfileFile Uploada11y-uploadmediaGeneric file upload field with size and count controls.
Media BasedimageImage Uploada11y-upload (accept="image/*")mediaImage file attachment with camera integration on mobile devices.
Media BasedvideoVideo Uploada11y-upload (accept="video/*")mediaVideo recording and file attachment.
Media BasedaudioAudio Uploada11y-upload (accept="audio/*")mediaAudio sound recording and audio file attachment.

(Note: Informational rich text without data collection is provided by the standalone text element; see Text Page Reference.)

Option Fields (Choice Based Questions) ​

Choice-based questions (radio, checkbox, dropdown, and ranking) manage an ordered list of Options:

Option Properties ​

  • Option Label (label): The visible text presented to the respondent. Translated per survey language in Localize Mode.
  • Option Code (build.code): Unique identifier used to key answers in database records, logic expressions, and CSV/JSON exports. Restricted to alphanumeric characters, hyphens, and underscores (^[a-zA-Z0-9_\-]+$).

Option Customization ​

  • Specify Field (props.specify): Checking Specify on a choice option adds an inline free-text input when that option is selected. This allows capturing qualitative elaborations (e.g. "Other: please specify"). The specify input carries its own translated label (specifyLabel).
  • Fixed Position (props.fixed): When option randomization is enabled on the question, toggling Fixed Position ensures this specific option remains anchored at its original index. This is essential for terminal options such as "None of the above", "All of the above", or "Prefer not to answer".

Glossary Items and Tooltips ​

Glossary terms provide on-demand definitions for technical, legal, or domain-specific terminology without cluttering question text:

  • Defining Terms: Add terms under the survey's Glossary container in Build → Compose. Each glossary item has a unique term identifier (name) and a translated definition (definition).

  • Referencing Terms in Content: To embed a glossary definition in any question label, helper text, or markdown block, use the <lapp-tooltip> custom element:

    html
    Please state your <lapp-tooltip term="grossIncome">gross annual income</lapp-tooltip>.
  • Respondent Interaction: The text renders with an accessible dashed underline. Hovering, tapping, or focusing the element opens an accessible popover containing the translated definition.

Validation Rules and Constraints ​

Validation is configured under the Settings tab in the question drawer:

General Settings ​

  • Required: When enabled, respondents cannot navigate past the question or submit the survey without providing a valid answer.
  • Label: The primary prompt asking for information.
    • Standard Mode: When form-level Accessible Label is off, labels are silently constrained to 80 characters to ensure layout stability.
    • Accessible Label Mode: Enabling Accessible Label removes the 80-character limit entirely and increases font readability.
  • Question Code (build.code): Unique camelCase key representing this question in database records and exported datasets. Derived automatically from the label, but can be manually overridden in Advanced Mode.

Numeric & Character Constraints ​

  • Min Length / Max Length: Applies to text inputs (textfield, textarea). Constrains minimum and maximum character counts.
  • Min / Max: Sets acceptable numeric bounds for number fields.
  • Step: Controls numeric granularity (e.g. 1 for whole numbers, 0.1 for single-digit decimals).

Pattern Validation (Strict Unicode Regex) ​

The Pattern field applies an HTML5 regular expression pattern to short text, textarea, and telephone inputs:

  • Implicit Anchoring: The browser automatically anchors patterns with ^(?: and )$, requiring the entire input string to match.
  • ES2024 Unicode Sets (v Flag): Pattern validation compiles regex using the strict browser v flag. In v mode, unescaped parentheses inside character classes trigger syntax errors. To match literal parentheses inside brackets, they must be escaped: [0-9\-\(\)].

Email Purposes ​

For email inputs — Email (textfield with type="email") and Account Email (a11y-account-email):

  • Use Email for a plain questionnaire answer with format validation.
  • Use Account Email when managing respondent identity verification or offering consent opt-ins for reminders, survey reports, or follow-up studies.
  • Collected addresses are kept out of data exports unless the survey selects the Dataset email purpose.

See Account Email Reference and the authoritative Email Purposes Table on the Share Email page.

Specialized Accessibility Configurations ​

Questions can be enhanced with rich multimodal accessibility features:

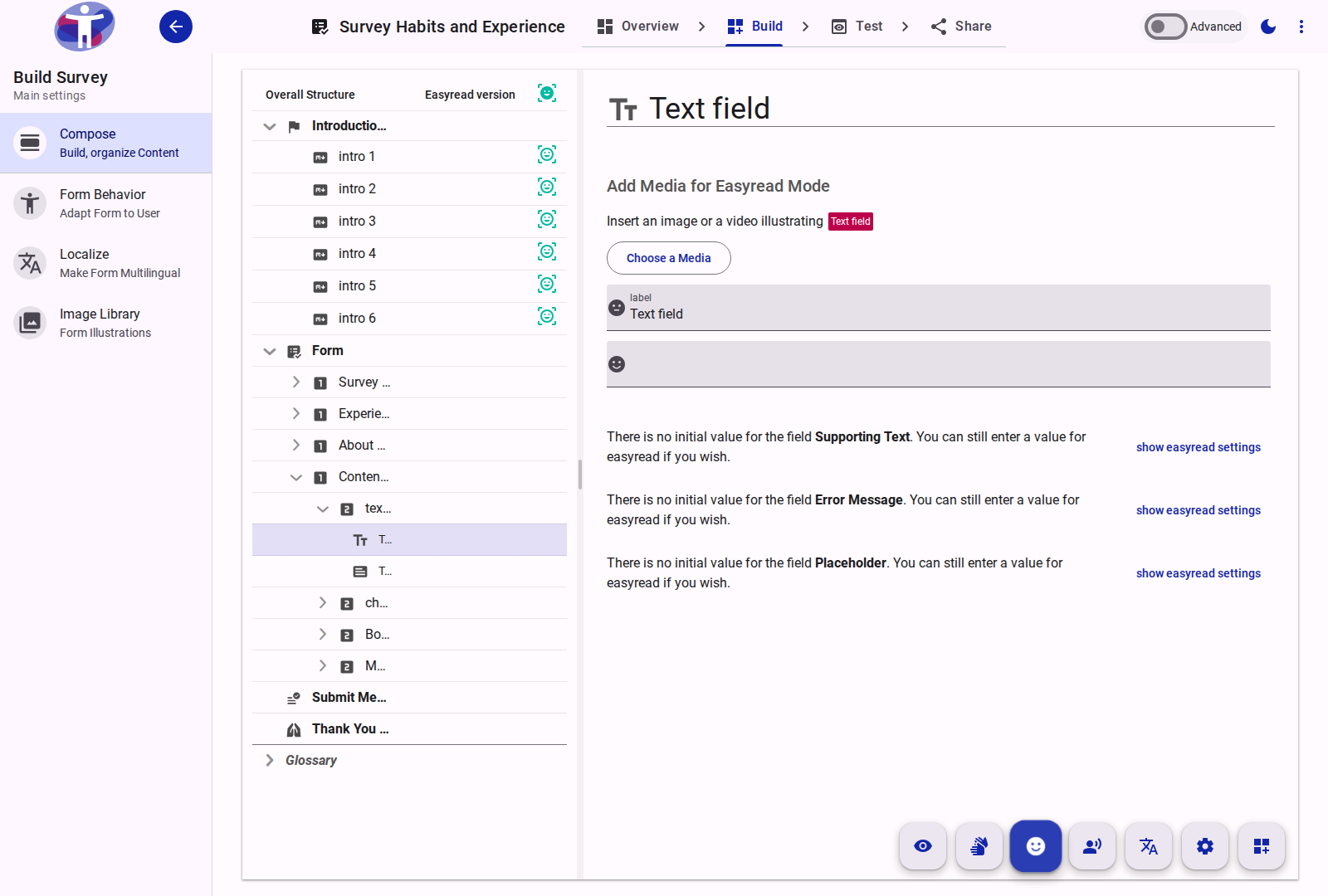

Easy Read configuration for a question.
Settings for adding Easy Read imagery and simplified text to a question.

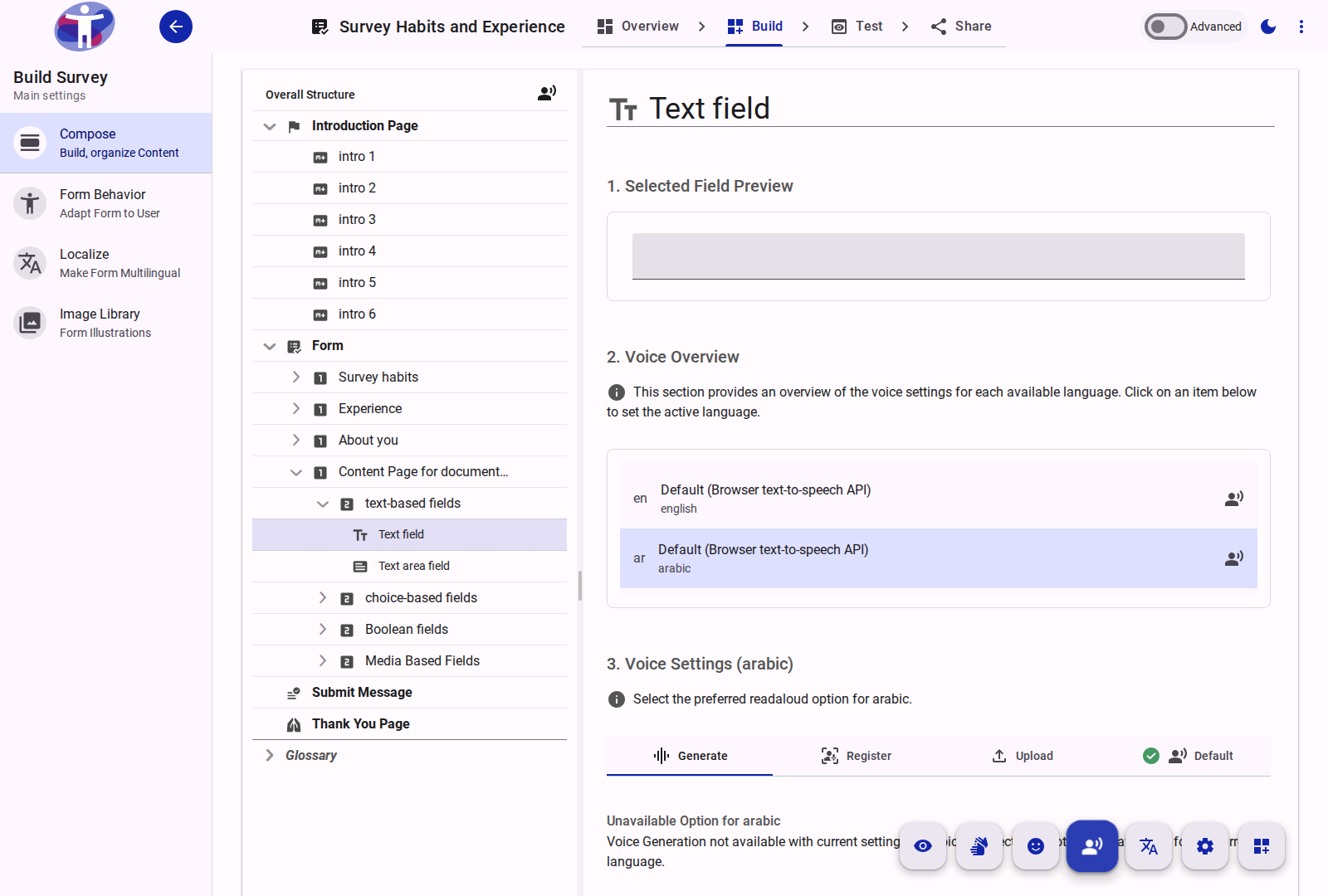

Read Aloud configuration for a question.
Settings for configuring the Read Aloud behavior for a question.

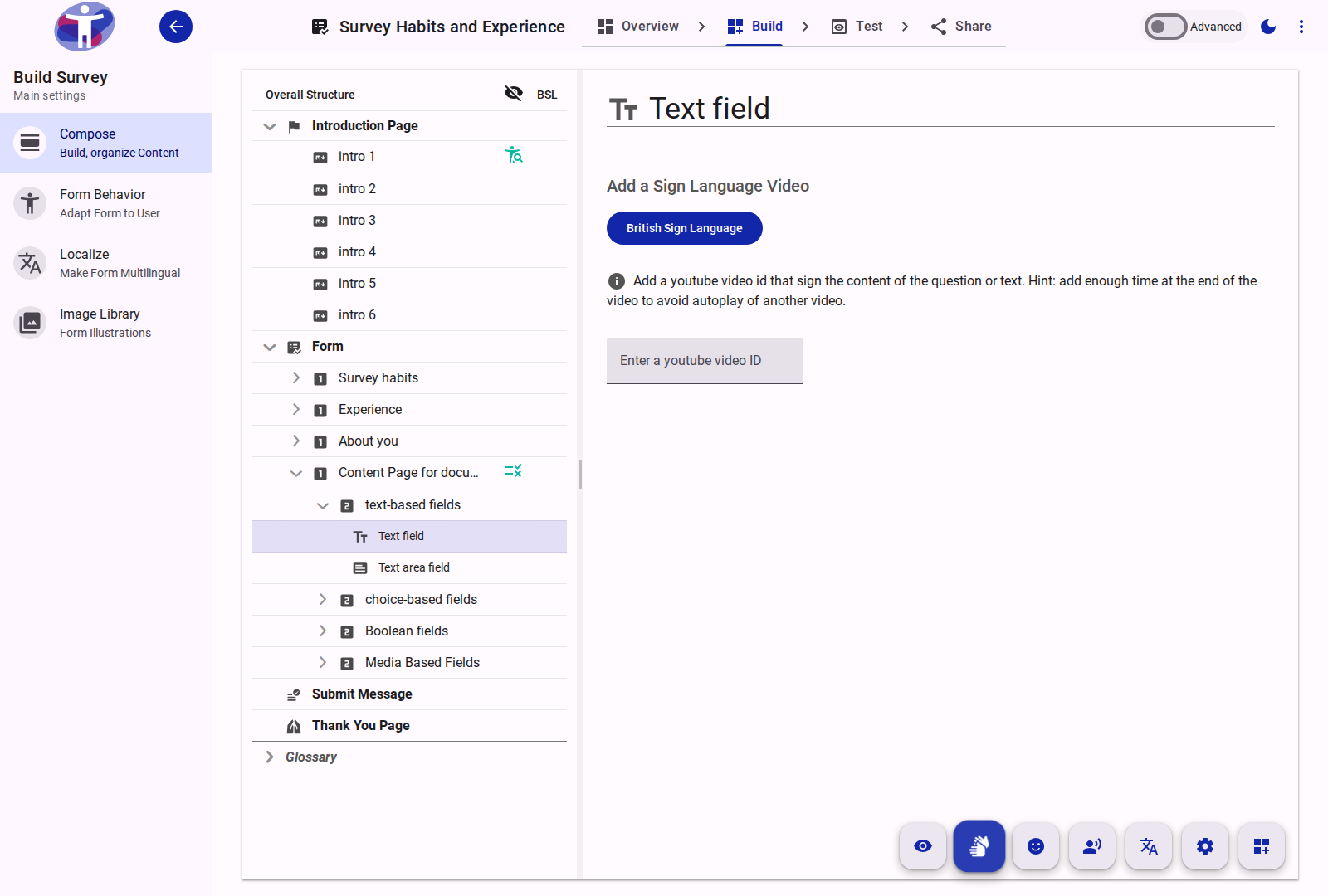

Sign Language configuration for a question.
Settings for linking Sign Language videos to a question.

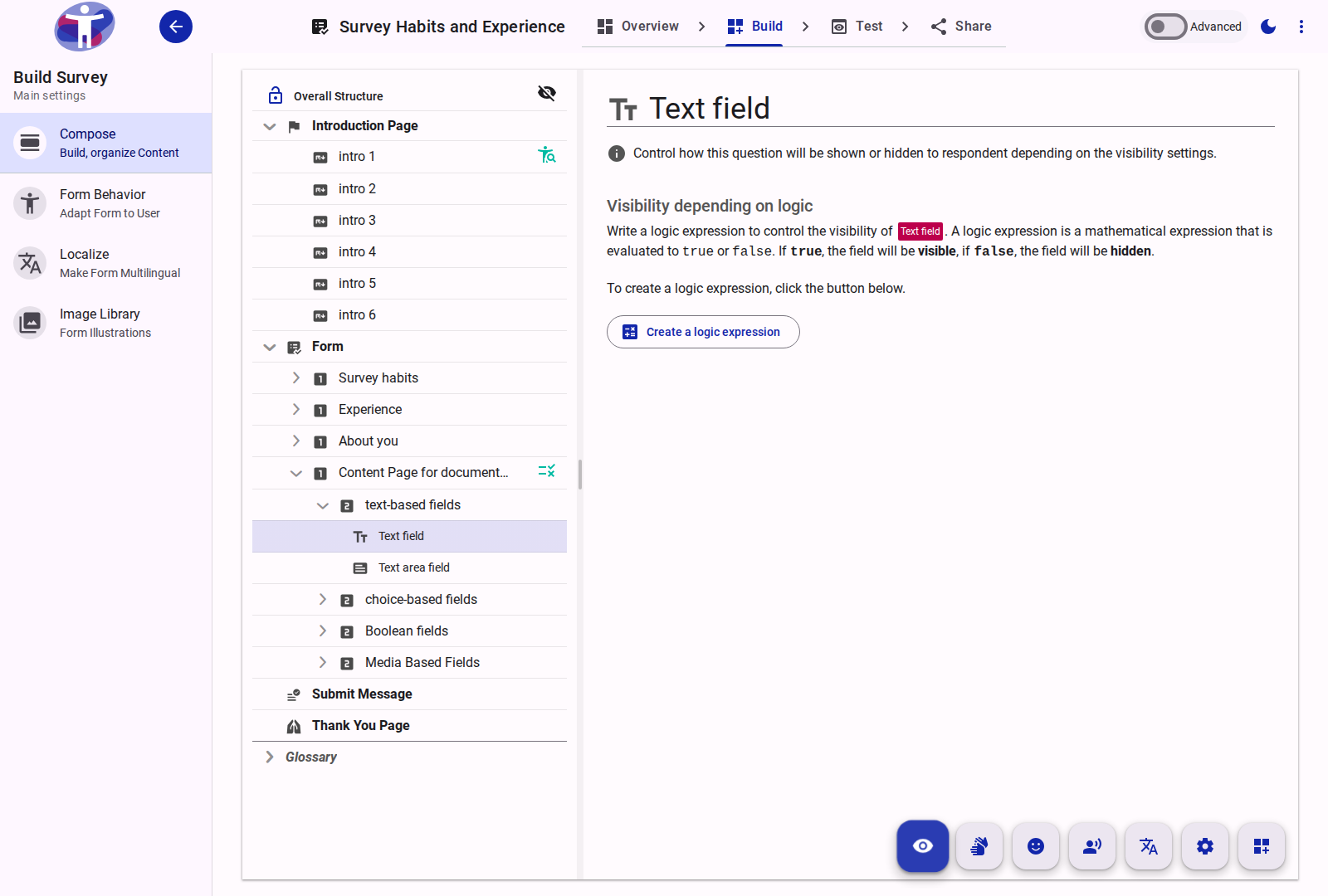

Visibility logic configuration for a question.
Settings for defining logical expressions that control when the question is visible to the respondent.
  • Easy Read: Provide simplified question phrasing and visual illustrations (see Using Easy Read).
  • Read Aloud: Configure text-to-speech audio pronunciation and voice overrides.
  • Sign Language: Attach YouTube video IDs translating the question into sign languages (see Use Sign Language).
  • Visibility Logic: Define conditional display rules showing or hiding this question dynamically (see Controlling Visibility).
